3 Pole DIN Rail Mount Circuit Breaker, 40 Amp 240V AC Miniature Circuit Breaker, Thermal Magnetic Trip AC Disconnect Switch MCB C40
- Regular price
-
$22.15 - Regular price
-
$0.00 - Sale price
-
$22.15

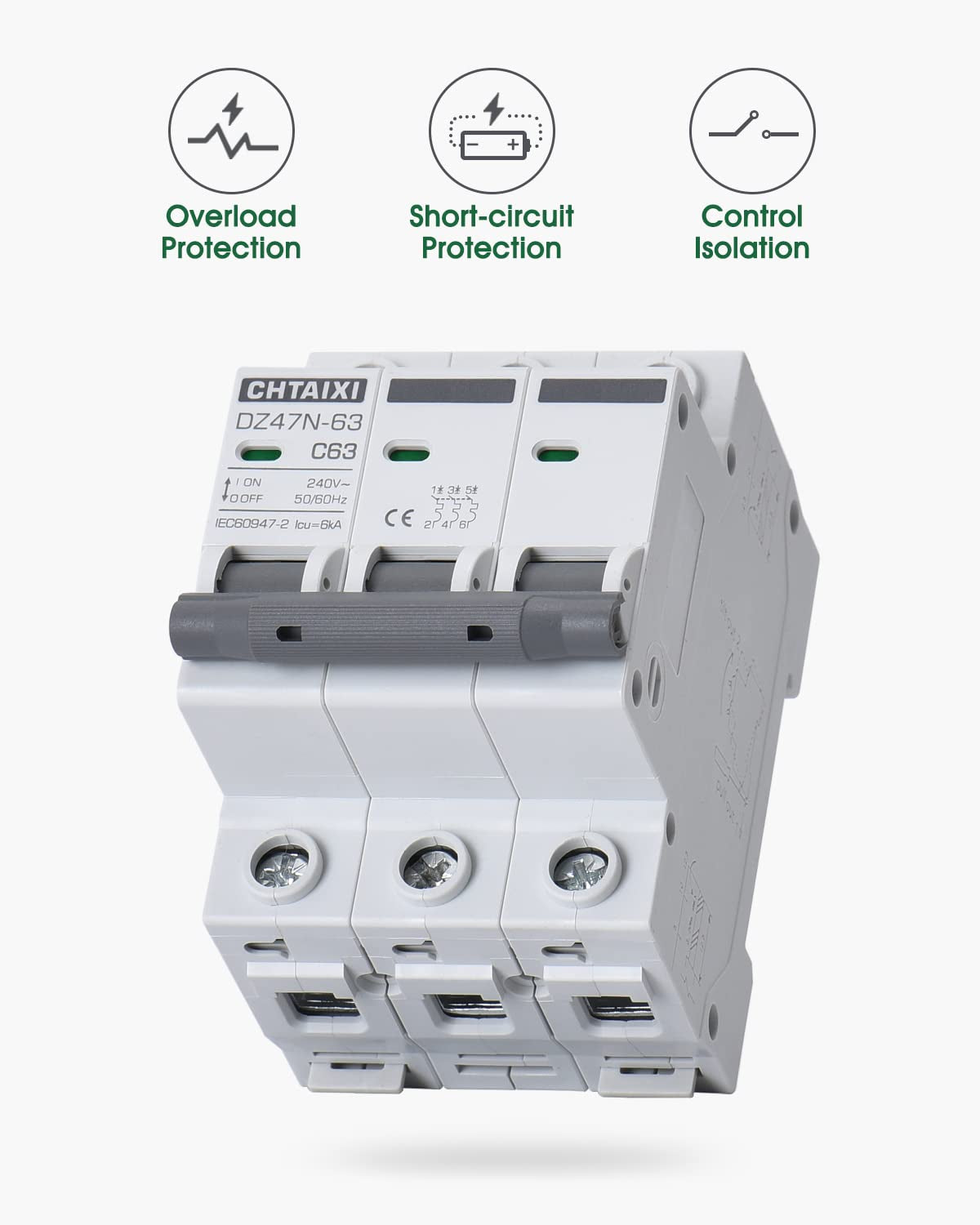

- FUNCTIONS: Used to protect 240V AC circuit from overload and short circuit damage, and can also be used for control and isolation.
- CURVE C: Magnetic trip range 5-10 times rated current.
- QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.
- APPLICATION: Can be used in home circuits, 3 phase circuit, or other 50/60Hz AC systems.
- INSTALLATION: 35mm DIN rail mount, Screw clamp wires (Soft silicone wire needs to crimp fixed the wire end with copper crimp first).
Product description

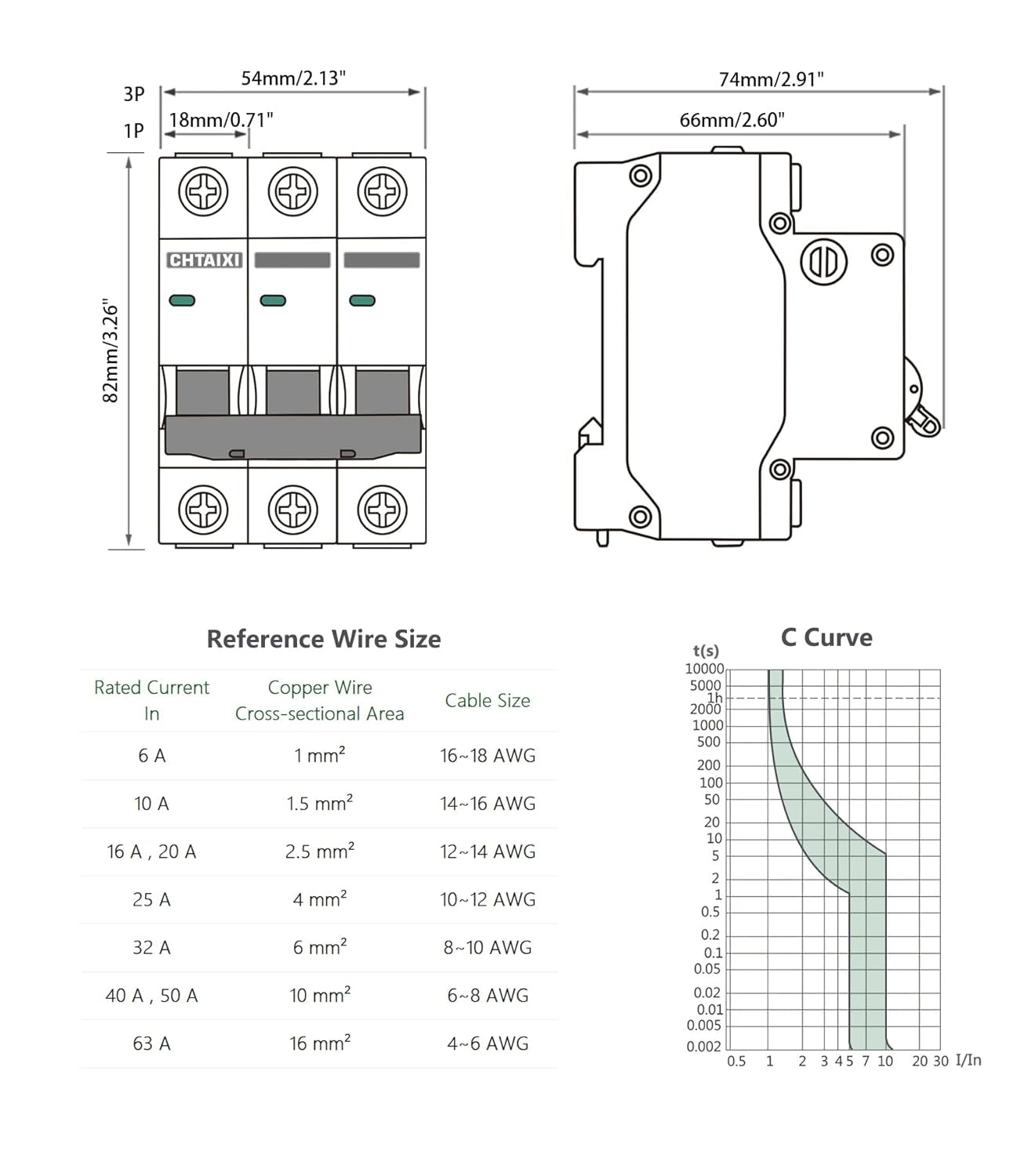

Specifications
Product type: AC Miniature Circuit Breaker
Rated operational voltage: 240V / 480V AC (optional)
Rated current [In]: 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional)
Poles: 3P
Trip unit technology: Thermal-magnetic
Curve code: C
Breaking capacity: 6 kA (240V) / 5 kA (480V) Ics=Icu
Uimp: 4 kV
Mechanical durability: 10000 cycles
Electrical durability: 4000 cycles
Operating temperature: -13°F(-25℃) ~ 140°F(60℃)
Mounting support: 35 mm DIN rail
Tightening torque: 2.5 N.m
Standard: IEC60947-2

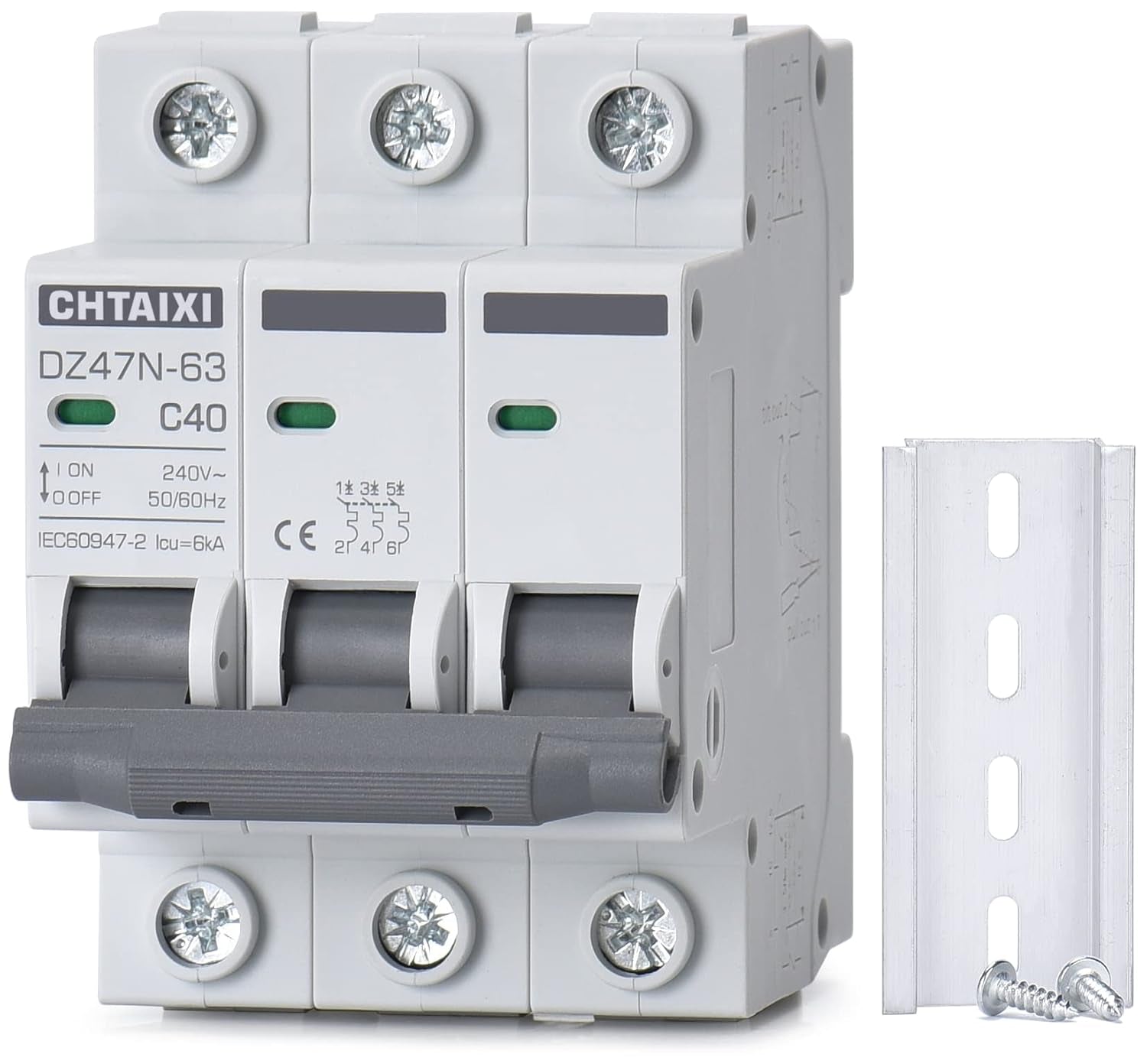

Package includes
1 x AC miniature circuit breaker
1 x DIN rail
2 x Screws
Quality Products to Protect Your Electricity Safety

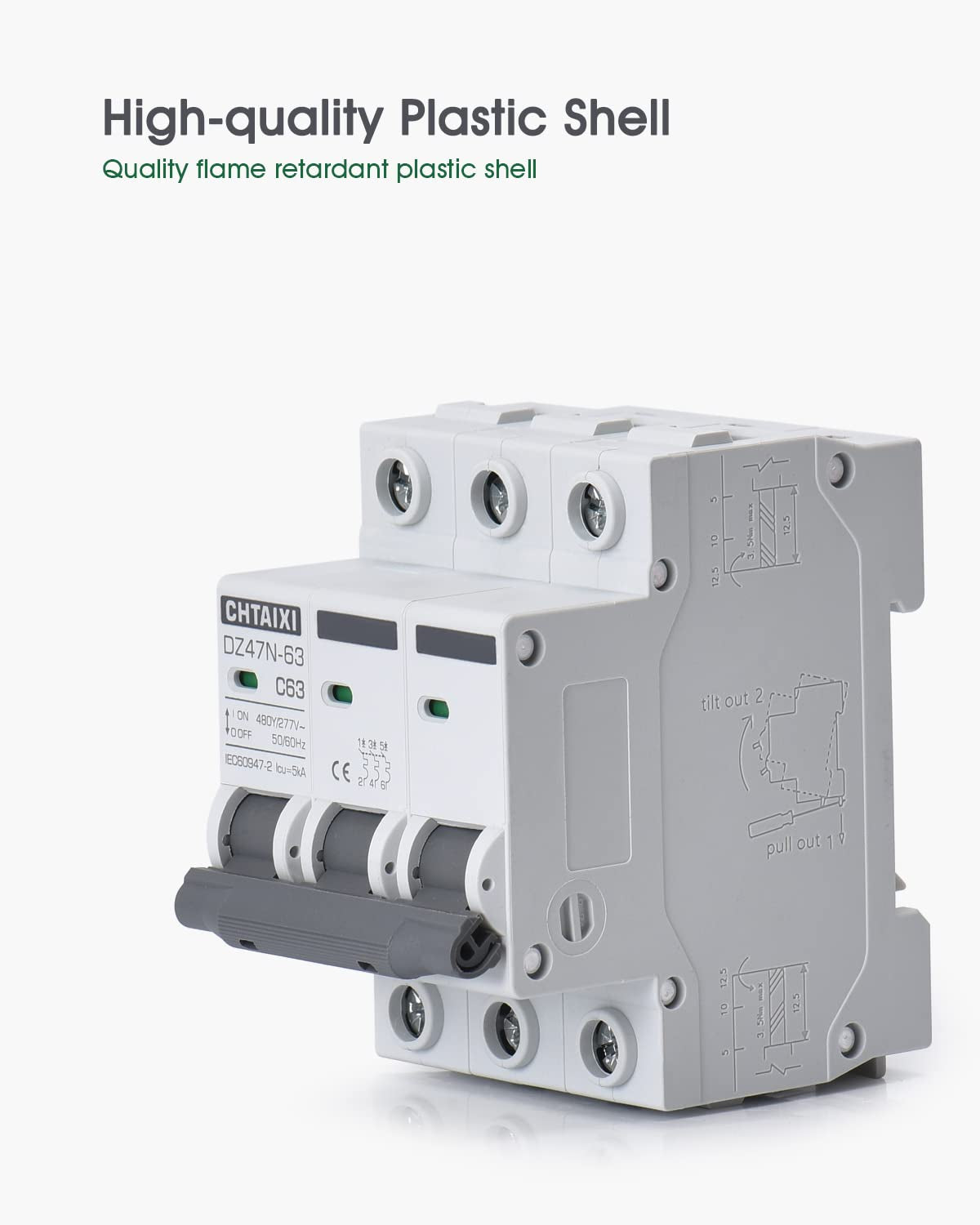

Quality Plastic Shell
- Flame retardant material, sturdy and durable.
Indicator Window
- Green Indicator: OFF
- Red Indicator: ON

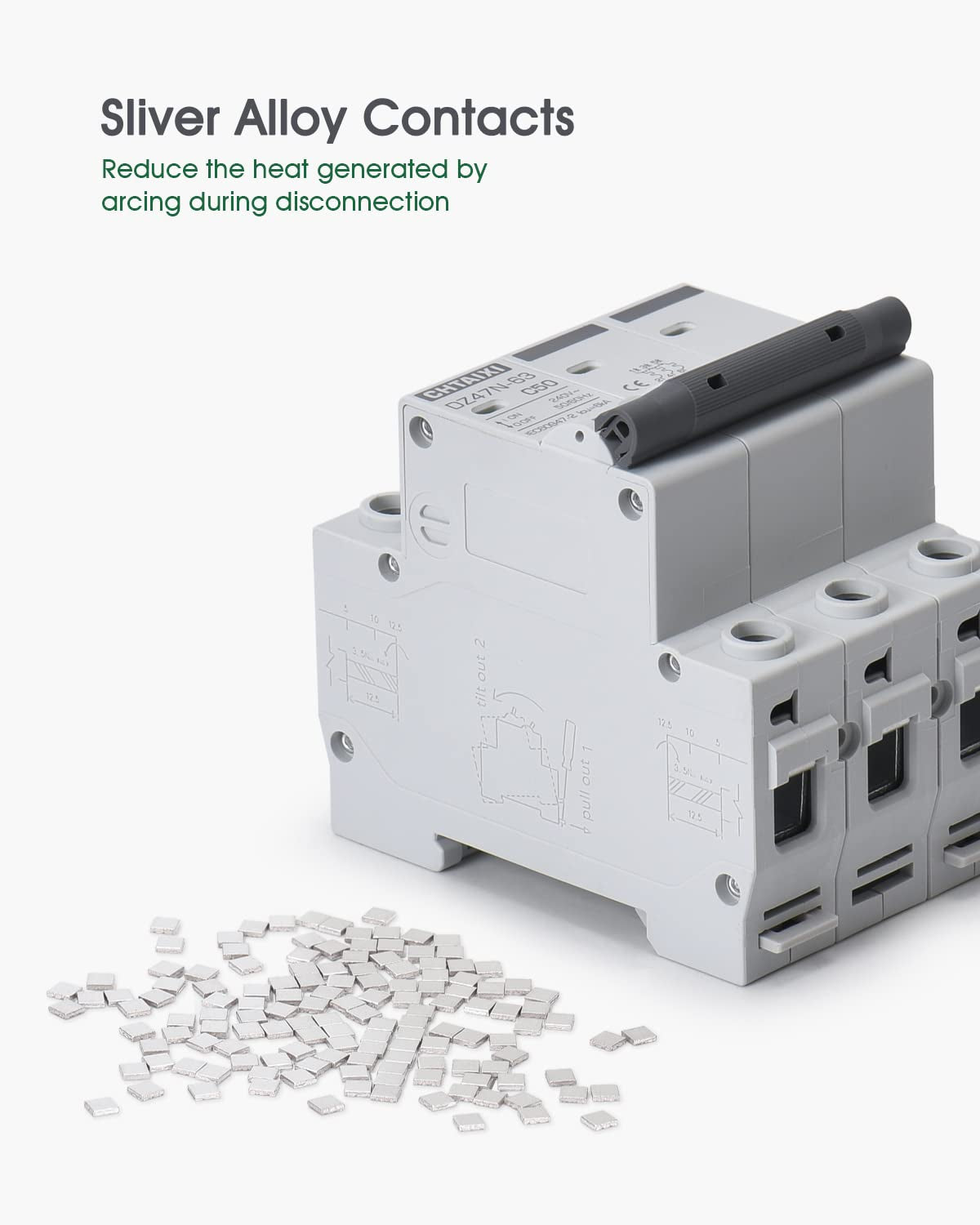

Silver Alloy Contacts
- Reduce the heat generated by arcing during disconnection.
- Reduce the wear of the contacts.
- Improve electrical durability.
Installation
DIN Rail
- Install the 35mm DIN rail horizontally in a stable environment.
Installation
- Hang the circuit breaker slot on the DIN rail.
- Push the lower end of the circuit breaker into the DIN rail.
Dismounting
- Push the circuit breaker upward.
- Turn the upper end of the circuit breaker out of the DIN rail.
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
